Electronic Appliance Wire

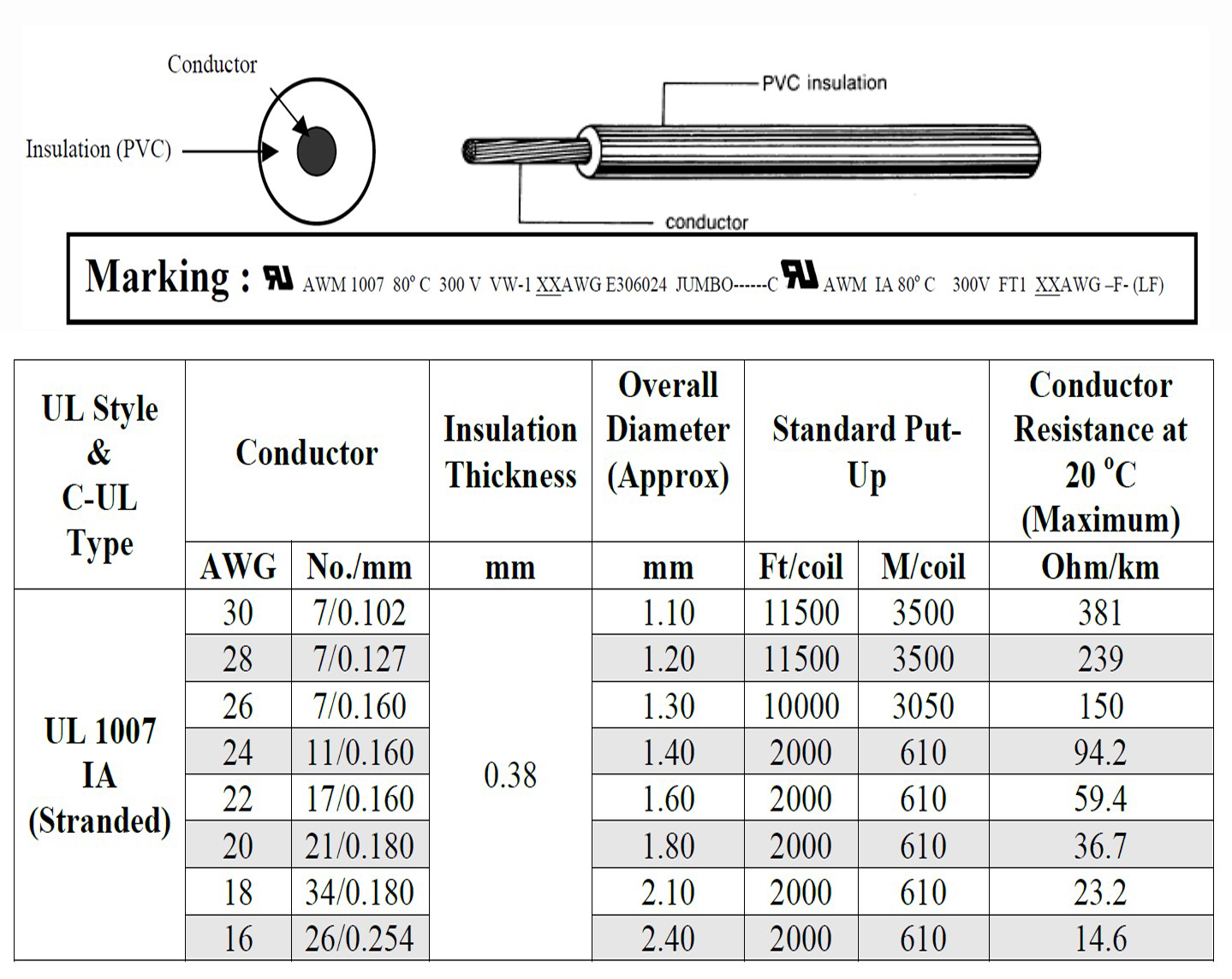

Applications :
- For general purpose on internal wiring
of electronic and electrical equipment
Product Description :
- Rated temperature: 80oC.
- Rated voltage: 300 volts
- Reference Standard : UL 758 &
CSA C22.2 No. 210, JQA –F- mark.
- Tinned, (stranded or solid) copper conductor,
30-16 AWG
- Color-coded PVC insulation,(RoHS Free)
- Passes VW-1 , FT1 & -F- flame test.
- Uniform thickness of wire to ensure easy
stripping and cutting

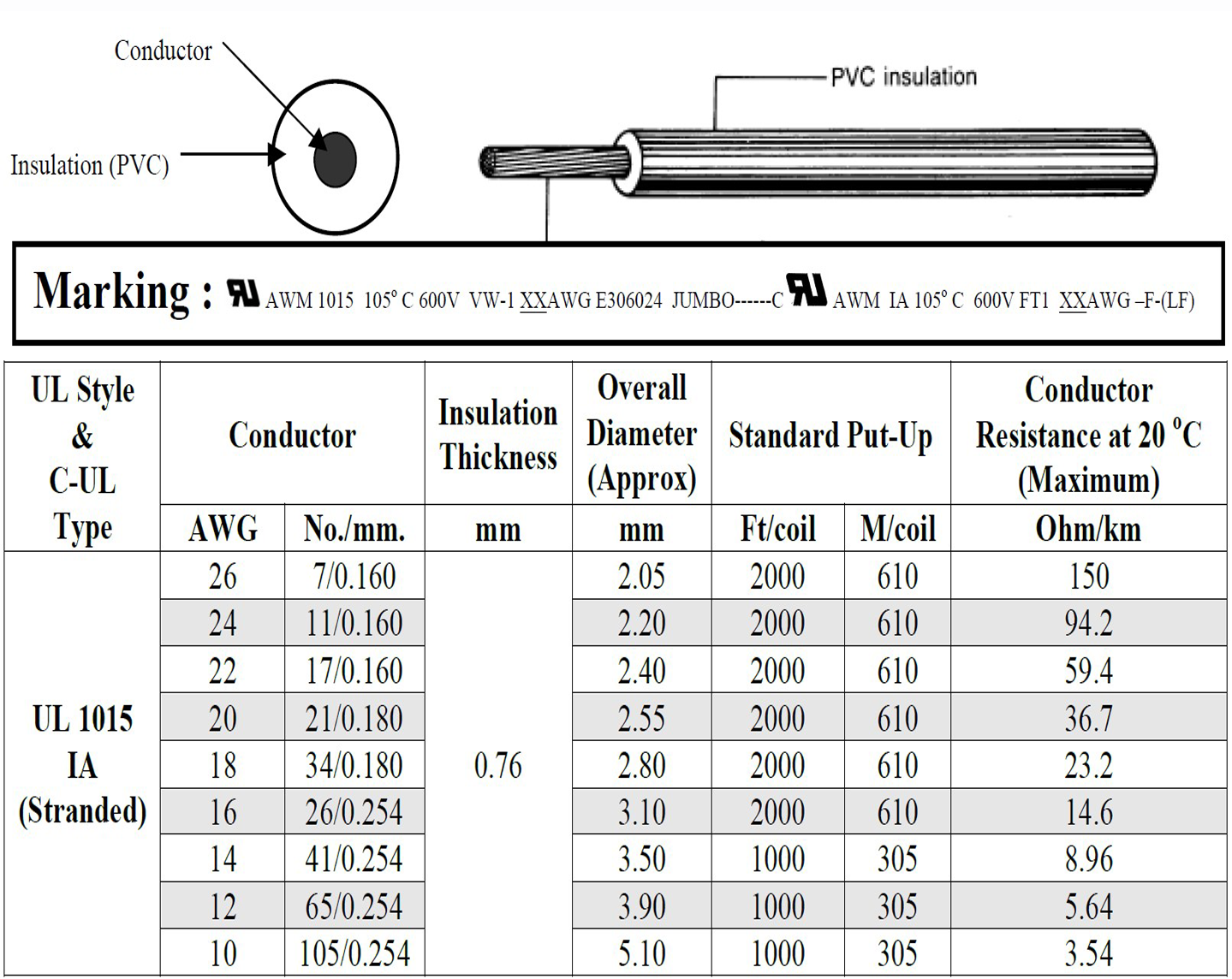

Application :
- For general purpose on internal wiring
of electronic and electrical equipment.
Product Description :
- Rated temperature 105oC
- Rated voltage: 600 volts.
- Reference Standard: UL 758 &
CSA C22.2 No. 210, JQA –F- mark.
- Solid or Stranded, tinned or bare copper
conductor, 26-10 AWG
- Color-coded PVC insulation (RoHS Free)
- Uniform thickness of wire to ensure easy
stripping and cutting
- Passes VW-1 , FT1 & -F- flame test
